erxes Messenger Script Installation

In the case of web messenger, knowledgebase, popups, you have to install some scripts on your website's code. In this section, we will demonstrate all the use-cases related to this topic.

Web messenger

    1

    Copy messenger code

      1

      Go to Settings menu => Appstore.

      2

      Click on the “Appstore” menu (see the below figure).

      app store menu
      3

      Then choose your messenger and click on the install code button from the right side (see the below figure).

      choose messenger
      4

      Copy the code (see the below figure).” menu (see the below figure).

      copy code
      5

      If your website is single page app then you can choose a single-page app and copy the code (see the below figure).” menu (see the below figure).

      single page app
    2

    Paste the code in your web source 6. Paste the code in bottom of the body tag (see the below figure).

    paste to your web
    3

    Once you have pasted the code, it will look like this in your web right bottom side (see the below figure).

    test window

Pop-Ups

    1

    Copy pop-ups code

      1

      Go to Pop-Ups menu from left sidebar (see the below figure).

      2

      Click on the install code button from the right side (see the below figure).

      left sidebar and install code button
      3

      Copy the code (see the below figure).

      left sidebar and install code button

      Important

      When you want to set an optional width and height of Popup scaling, it allows 2 flow types namely embedded and pop-ups. Insert code section A and B onto the top of body tag in page of your website.

      Important

      If your pop-up flow type is "Embedded", then you can choose the code included in section “A” (see the above figure).

      Important

      If your pop-up flow type is "Popup" then you can choose the code section “B” (see the above figure).

      Info

      ShoutBox, Dropdown, Slide-in Left, Slide-in Right types are, do not necessary to copy install code.

    2

    Paste the code in your web source

    Paste the code in bottom of the body tag on every page you want Erxes pop-ups to appear (see the below figure).

    left sidebar and install code button
    3

    Result

    Once you have pasted the code, it will look like this in your web (see the below figure)

    left sidebar and install code button

Knowledbase

    1

    Copy knowledgebase code

      1

      Go to Knowledge Base menu from left sidebar (see the below figure).

      mdx image
      2

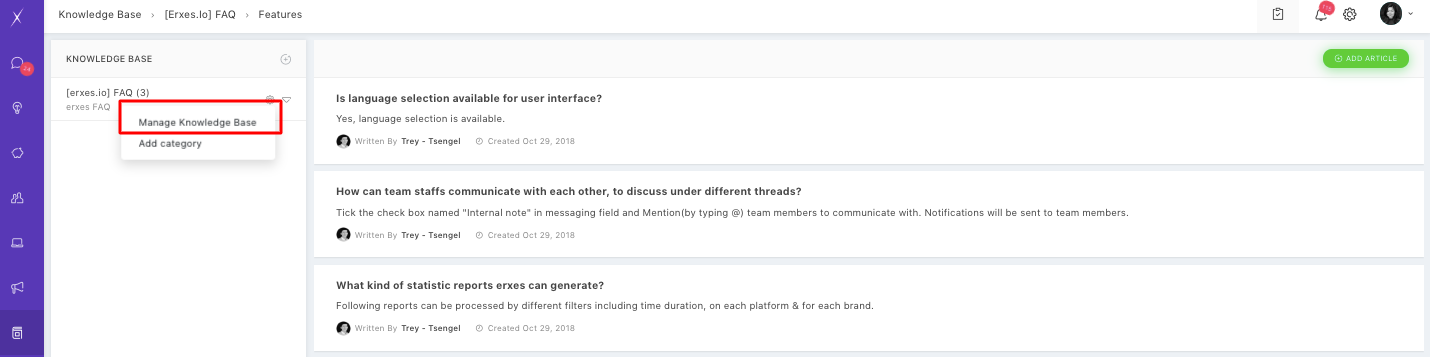

      Choose the option named "Manage Knowledgebase" from dropdown menu (see the below figure).

      mdx image
      3

      Copy the install code of Knowledge Base (see the below figure).

      mdx image

      Important

      Do not miss to copy the additional source of section “B” and copy it into top of body tag of the source code.
    2

    Paste the code in your web source

    Paste the code in bottom of body tag on every page you want Erxes knowledge base to appear (see the below figure).

    mdx image
    3

    Result

    Once you have pasted the code, it will look like this in your web (see the below figure).

    mdx image

Google Tag Manager

Basic steps to install scripts.

    1

    Install google tag manager

      1

      Log in your google tag manager account.

      2

      Click on the Admin from the dropdown menu, then choose the 'Install Google Tag Manager' from the right sidebar (see the below figure).

      mdx image
      3

      Copy the code as high in the head , then paste it onto head tag of every page of your website (see the below figure).

      4

      Copy the code as high in the body , then paste it onto body tag of every page of your website (see the below figure).

      mdx image
      5

      Paste the code of google tag manager onto the every page of your website (see the below figure).

      mdx image
    2

    Web messenger

      1

      Copy messenger code

        1

        Go to Settings menu => Appstore.

        2

        Click on the “Appstore” menu (see the below figure).

        mdx image
        3

        Then choose your messenger and click on the install code button from the right side (see the below figure).

        mdx image
        4

        Copy the code of Basic Javascript (see the below figure)

        mdx image
      2

      Paste the code in google tag manager

        1

        Log in your google tag manager account.

        2

        Click the button “Add a new tag” (see the below figure).

        mdx image
        3

        Click the Tag Configuration => Custom HTML (see the below figure).

        mdx image
        4

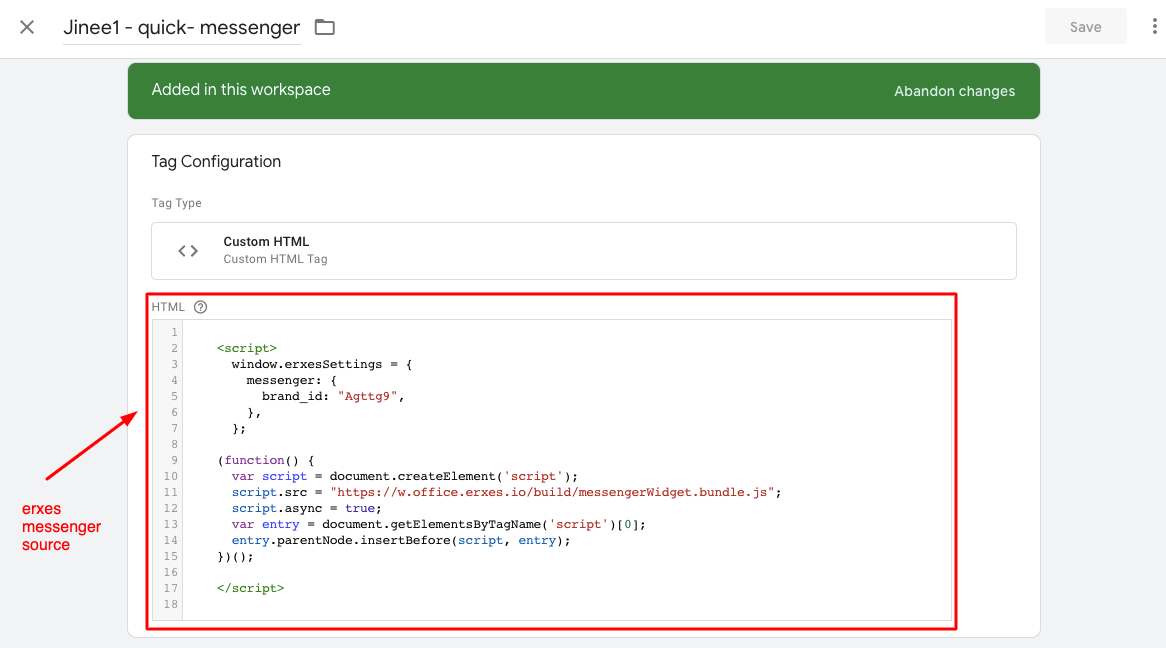

        Paste the messenger code to Tag Configuration (see the below figure).

        mdx image
        5

        After paste the code, configure to Triggering for All Pages (see the below figure).

        mdx image
      3

      Result

      Once you have pasted the code, it will look like this in your web right bottom side (see the below figure).

      mdx image
    3

    Pop-Ups

      1

      Copy pop-ups code

        1

        Log in your Erxes account.

        2

        Go to Pop-Ups menu from left sidebar (see the below figure).

        3

        Click the install code button which you created the Pop Ups (see the below figure).

        mdx image
        4

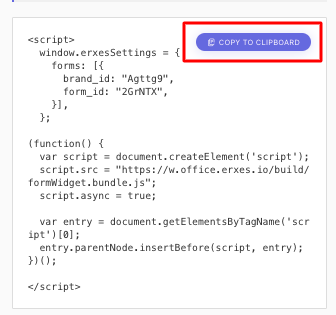

        Copy the code (see the below figure).

        mdx image
      2

      Paste the code in Google Tag Manager

        1

        Log in your Google Tag Manager account.

        2

        Click the button “Add a new tag” (see the below figure).

        mdx image
        3

        Click the Tag Configuration => Custom HTML (see the below figure).

        mdx image
        4

        Paste the code of Erxes pop-up (see the below figure).

        mdx image
        5

        After paste the code, configure to Triggering for All Pages (see the below figure).

        mdx image
        6

        Click SAVE, then SUBMIT and PUBLISH the script in Google Tag Manager.

      3

      Optional: Set width/height or use embedded flow

        1

        Go to Pop-Ups menu from left sidebar (see the below figure).

        2

        Click on the install code button from the right side (see the below figure).

        mdx image
        3

        Copy the code section A (for 'Embedded') or section B (for 'Popup').

        mdx image
        4

        Paste the selected code into the body tag of the web page source (see the below figure).

        mdx image
      4

      Result

      Once you have pasted the code, it will look like this on your website (see the below figure).

      mdx image

      If you have encountered some mistakes, please make sure following steps:

        1

        Verify the flow types and that the source code matches your setup.

        2

        Check that the form ID is correctly set both in Google Tag Manager and in your web source.

        3

        When you edit the script in Google Tag Manager, always save, then submit, and publish it.

        4

        Ensure the trigger configuration in Google Tag Manager is correct.

    4

    Knowledgebase

      1

      Copy Knowledgebase code

        1

        Log in to your Erxes account.

        2

        Go to Knowledge Base menu from left sidebar (see the below figure).

        mdx image
        3

        Choose the option named "Manage Knowledgebase" from dropdown menu (see the below figure).

        mdx image
        4

        Copy the install code of Knowledge Base (see the below figure).

        mdx image
      2

      Paste the code in Google Tag Manager

        1

        Log in to your Google Tag Manager account.

        2

        Click the button “Add a new tag” (see the below figure).

        mdx image
        3

        Click the Tag Configuration => Custom HTML (see the below figure).

        mdx image
        4

        Paste the code of Erxes Knowledge Base (see the below figure).

        mdx image
        5

        After paste the code, configure to Triggering for All Pages (see the below figure).

        mdx image
        6

        Click SAVE, then SUBMIT and PUBLISH the script in Google Tag Manager.

      3

      Optional: Set width/height or custom position

        1

        Go to Knowledge Base menu from left sidebar (see the below figure).

        mdx image
        2

        Choose the option named "Manage Knowledgebase" from dropdown menu (see the below figure).

        mdx image
        3

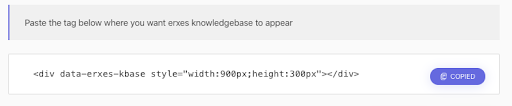

        Copy the code (see the below figure).

        mdx image
        4

        Paste the code onto the top of the body tag in your web page source (see the below figure).

        mdx image
      4

      Result

      Once you have pasted the code, it will look like this on your website (see the below figure).

      mdx image

Erxes script manager

Basic steps to install Erxes scripts.

    1

    Web Messenger

      1

      Copy Script Manager code

        1

        Log in to your Erxes account.

        2

        Go to Settings menu => Script Manager (see the below figure).

        mdx image
        3

        Click 'NEW SCRIPT' to create a new script (see the below figure).

        mdx image
        4

        Insert name and select the messenger that you created (see the below figure).

        mdx image
        5

        Click on the install code button from the list (see the below figure).

        mdx image
        6

        Copy the code by clicking 'COPY TO CLIPBOARD' (see the below figure).

        mdx image
      2

      Paste the code in your website

      1

      Paste the code into the top of the body tag on every page where you want Erxes Script Manager to appear (see the below figure).

      mdx image
      3

      Result

      Once you have pasted the code, it will look like this on your website's bottom-right corner (see the below figure).

      mdx image
    2

    Pop-Ups

      1

      Copy code from Script Manager

        1

        Log in to your Erxes account.

        2

        Go to Settings menu => Script Manager.

        mdx image
        3

        Click 'NEW SCRIPT' to create a new script.

        mdx image
        4

        Insert a name and select the POP UPS you created.

        mdx image
        5

        Click the install code button from the list for your created POP UPS (see the below figure).

        mdx image
        6

        Copy the code (see the below figure).

        mdx image
        7

        Optional: Customize popup scaling (width/height)

          1

          Go to Pop-Ups feature, select your created pop-up, and click the install code button from the right side (see the below figure).

          mdx image
          2

          Copy the code and paste it at the top of the body tag (see the below figure).

          mdx image
          3

          If your flow type is "Embedded", use the code from section “A” (see the above figure).

          4

          If your flow type is "Popup", use the code from section “B” (see the above figure).

          5

          Note: For ShoutBox, Dropdown, Slide-in Left, and Slide-in Right, no install code is needed.

      2

      Paste the code in your website

      1

      Paste the code at the bottom of the body tag on every page where you want Erxes Pop-Ups to appear (see the below figure).

      mdx image
      3

      Result

      Once you have pasted the code, it will look like this on your website (see the below figure).

      mdx image
    3

    Knowledgebase

      1

      Copy Knowledgebase code from Script Manager

        1

        Log in to your Erxes account.

        2

        Go to Settings menu => Script Manager.

        mdx image
        3

        Click 'NEW SCRIPT' to create a new script.

        mdx image
        4

        Insert a name and select the KNOWLEDGEBASE TOPIC you previously created (see the below figure).

        mdx image
        5

        Click the install code button from the list for the created KNOWLEDGEBASE TOPIC (see the below figure).

        mdx image
        6

        Copy the code (see the below figure).

        mdx image
        7

        Optional: Customize Knowledgebase scaling (width/height)

          1

          Go to the Knowledge Base menu from the left sidebar (see the below figure).

          mdx image
          2

          Choose "Manage Knowledgebase" from the dropdown menu (see the below figure).

          mdx image
          3

          Copy the code (see the below figure).

          mdx image
          4

          Paste this code at the top of the body tag in your web page source (see the below figure).

      2

      Paste the code in your website

      1

      Paste the script code at the bottom of the body tag on every page where you want the Erxes Script Manager to appear (see the below figure).

      mdx image
      3

      Result

      Once you have pasted the code, it will look like this on your website (see the below figure).

      mdx image

Advanced setup

Advanced steps to install scripts. Erxes let you enable to track all possible customer fields from messenger.

    1

    Get Data from Your Web App (Logged-in Users)

      1

      Copy Messenger Install Code

        1

        Go to Settings menu => Appstore.

        mdx image
        2

        Select your messenger and click the install code button.

        mdx image
        3

        Copy the code (see the below figure).

        mdx image
        4

        For single-page apps, use the SPA code version (see the below figure).

        mdx image
      2

      Paste the Code into Your Web App

      1

      Paste the code at the bottom of the body tag (see the below figure).

      mdx image
      3

      Add Logged-in User Information (Optional)

        1

        Insert additional fields under `brand_id` in your messenger script.

        2

        User details will be auto-filled in their profile in Erxes.

        mdx image
        3

        Custom fields will show under the 'Tracked Data' section.

        mdx image
        4

        companyData will show under 'Companied' section in upper-right.

        mdx image
        5

        To track any custom data, just insert it inside the `data` object.

      4

      Programmatic Control and Button Integration

        1

        To show messenger on button click, use the following script.

        2

        Uncheck 'Show launcher' to hide default launcher.

        3

        You can still call showMessenger() manually after hiding launcher.

      5

      Messenger Position Customization

      To move the messenger to the left side of your screen, use the following custom CSS in your messenger script:

      6

      CSS Style Overrides

      Apply these styles in your parent CSS to modify form appearance.

      7

      Advanced Installation Combinations

      You can combine messenger with pop-ups and/or knowledgebase as follows:

      • Messenger + Pop-Ups (or Knowledgebase)
      • Messenger + Pop-Ups + Knowledgebase (M+P+K)
      • (M+P+K) + Pop-Ups
      • (M+P+K) + Knowledgebase
      • (M+P+K) + Pop-Ups + Knowledgebase
    2

    Web Messenger + Pop-Ups (or Knowledgebase)

      1

      Copy Messenger Code

        1

        Go to Settings menu => Appstore.

        2

        Ensure the MESSENGER INTEGRATION brand name matches your created messenger (see the below figure).

        mdx image
      2

      Connect Pop-Ups or Knowledgebase to Messenger

        1

        Option A: Web Messenger + Pop-Ups

          1

          Click the Add button for Pop-Ups to connect it to the messenger.

          mdx image
          2

          Make sure the Pop-Ups brand name matches your created Pop-Ups.

          mdx image
          3

          Ensure MESSENGER INTEGRATION brand name matches your messenger (see section A).

          mdx image
        2

        Option B: Web Messenger + Knowledgebase

          1

          Click the Add button for Knowledgebase to connect it to the messenger.

          mdx image
          2

          You can use a different brand name for Messenger and Knowledgebase—they will still work together.

          mdx image
          3

          Ensure MESSENGER INTEGRATION brand name matches your messenger (see section A).

          mdx image
        3

        Click on the install code button for Messenger (see the below figure).

        mdx image
        4

        Copy the Messenger install code.

        mdx image
        5

        For single-page apps, choose and copy the SPA version of the script.

        mdx image
      3

      Paste the Code into Your Website

      1

      Paste the Messenger script at the bottom of the body tag (see the below figure). This step is the same for both Pop-Ups and Knowledgebase integrations.

      mdx image
      4

      Result

        1

        Once the script is added, the Messenger + Pop-Ups widget will appear at the bottom-right corner (see the below figure).

        mdx image
        2

        Messenger + Knowledgebase widget will also appear similarly (see the below figure).

        mdx image
    3

    Web Messenger + Pop-Ups + Knowledgebase (M+P+K)

      1

      Copy Messenger Code and Connect Pop-Ups & Knowledgebase

        1

        Go to Settings menu => Appstore.

        2

        Ensure the MESSENGER INTEGRATION brand name matches your created messenger (see the below figure).

        mdx image
        3

        Connect Knowledgebase to Messenger

          1

          Click the Add button for Knowledge Base to connect it to the messenger.

          mdx image
          2

          Make sure the MESSENGER INTEGRATION brand name is the same as your created messenger.

          mdx image
        4

        Connect Pop-Ups to Messenger

          1

          Click the Add button for Pop-Ups to connect them to the messenger.

          mdx image
          2

          Ensure the MESSENGER INTEGRATION brand name is the same as your created messenger.

          mdx image
          3

          Ensure the POP UPS brand name is the same as your created Pop-Ups.

        5

        Go to Messenger and click the install code button (see the below figure).

        mdx image
        6

        Copy the Messenger script code.

        mdx image
        7

        If your site is a Single Page App, use the SPA version of the code.

        mdx image
      2

      Paste the Code into Your Website

      1

      Paste the Messenger script code at the bottom of the <body> tag on every page (see the below figure).

      mdx image
      3

      Result

      1

      Once the code is installed, the Messenger + Pop-Ups + Knowledgebase widget will appear at the bottom-right corner of your site.

      mdx image
      2

      Click the "Support" button to trigger the Pop-Up form.

    4

    (M + P + K) + Pop-Ups

      1

      Copy Messenger and Pop-Ups Code

      1

      Follow the base setup from (M+P+K) combination first. [Click here to reference (M+P+K)](URL_TO_MPK_GUIDE)

      2

      Go to Pop-Ups menu from the left sidebar.

      3

      Click the install code button from the right side of your created Pop-Up.

      mdx image
      4

      Copy the Pop-Up code.

      mdx image
      5

      If using embedded or popup flow type, insert section A or B at the top of the <body> tag.

      6

      ShoutBox, Dropdown, Slide-in Left/Right types do not require install code.

      2

      Paste the Code in Your Web Source

      1

      Paste the Pop-Up code at the bottom of the <body> tag.

      mdx image
      3

      Result

      1

      The combined Messenger + Pop-Ups + Knowledgebase widget appears at the bottom-right corner.

      mdx image
    5

    (M + P + K) + Knowledgebase

      1

      Copy Messenger and Knowledgebase Code

      1

      Follow the base setup from (M+P+K) combination first. [Click here to reference (M+P+K)](URL_TO_MPK_GUIDE)

      2

      Go to Knowledge Base menu from the left sidebar.

      mdx image
      3

      Choose "Manage Knowledgebase" from the dropdown menu.

      mdx image
      4

      Copy the code (see the below figure).

      mdx image
      5

      Insert the additional source from section “B” at the top of the <body> tag.

      2

      Paste the Code in Your Web Source

      1

      Paste the Knowledgebase script at the bottom of the <body> tag.

      mdx image
      3

      Result

      1

      The Messenger + Pop-Ups + Knowledgebase combo appears in the bottom-right.

      mdx image
    6

    (M + P + K) + Pop-Ups + Knowledgebase

      1

      Copy Messenger and Pop-Ups Code

      1

      Follow the base setup from (M+P+K) combination first. [Click here to reference (M+P+K)](URL_TO_MPK_GUIDE)

      2

      Go to Pop-Ups menu from the left sidebar.

      3

      Click on the install code button from the right side.

      mdx image
      4

      Copy the Pop-Ups code.

      mdx image
      5

      Insert section A or B into the top of the <body> tag depending on your Pop-Up flow type.

      6

      Skip install if using ShoutBox, Dropdown, Slide-in Left, or Slide-in Right.

      2

      Paste the Pop-Ups Code

      1

      Paste the code at the bottom of the <body> tag.

      mdx image
      3

      Copy and Insert Knowledgebase Code

      1

      Go to Knowledge Base => Manage Knowledgebase from the sidebar.

      mdx image
      2

      Copy the Knowledgebase install code.

      mdx image
      3

      Insert section “B” of Knowledgebase into the top of the <body> tag.

      4

      Paste the Knowledgebase Code

      1

      Paste the code at the bottom of the <body> tag.

      mdx image
      5

      Result

      1

      The Messenger + Pop-Ups + Knowledgebase combo will now appear at the bottom-right of your website.

      mdx image
    7

    Advanced Google tag manager

    In the advanced google tag manager installation is described combination of the following features.

    • Messenger + Pop-Ups (or Knowledgebase)
    • Messenger + Pop-Ups + Knowledgebase (M+P+K)
    • (M+P+K) + Pop-Ups
    • (M+P+K) + Knowledgebase
    • (M+P+K) + Pop-Ups + Knowledgebase

Install google tag manager

    1

    Log in your google tag manager account.

    2

    Click on the Admin from the dropdown menu, then choose the "Install Google Tag Manager" from the right sidebar (see the below figure).

    mdx image
    3

    Copy the code as high in the head , then paste it onto head tag of every page of your website (see the below figure).

    4

    Copy the code as high in the body , then paste it onto body tag of every page of your website (see the below figure).

    mdx image
    5

    Paste the code of google tag manager onto the every page of your website (see the below figure).

    mdx image

Web Messenger + Pop-Ups (or Knowledgebase)

This is the script install instruction of Messenger contains Pop-Ups form or Messenger contains Knowledgebase form in Google tag manager. Basic instruction is going through same steps and emphasized steps for difference bewteen Pop-Ups and Knowledbase form in (3 to 6 and 16 to 20).

    1

    Copy messenger code

    1

    Go to Settings menu => Appstore.

    2

    You need to make sure the brand name that you created messenger (see the below figure).

    mdx image
    2

    Web messenger + Pop-Ups

    1

    Click the Add button of Pop-Ups in order to connect the messenger.

    mdx image
    2

    Add Pop Ups (see the below figure).

    mdx image
    3

    Make sure MESSENGER INTEGRATION brand name is same as your created messenger (see the above figure section A and below figure).

    mdx image
    4

    Make sure POP UPS brand name is same as your created Pop-Ups (see the above figure section B).

    3

    Web messenger + Knowledgebase

    1

    Click the Add button of Knowledge Base in order to connect the messenger.

    mdx image
    2

    Add knowledge base (see the below figure).

    mdx image
    3

    Make sure MESSENGER INTEGRATION brand name is same as your created messenger (see the above figure section A and below figure).

    mdx image
    4

    In this case, different brand name of Messenger and Knowledgebase can be run normal.

    4

    Copy the Messenger install code

    1

    Go to Messenger and click on the install code button from the right side (see the below figure).

    mdx image
    2

    Copy the code (see the below figure).

    mdx image
    3

    If your website is single page app then you can choose a single-page app and copy the code (see the below figure).

    mdx image
    5

    Paste the code in Google Tag Manager

    1

    Log in your google tag manager account.

    2

    Click the button “Add a new tag” (see the below figure).

    mdx image
    3

    Click the Tag Configuration => Custom HTML (see the below figure).

    mdx image
    4

    Paste the code of Erxes pop-up (see the below figure).

    mdx image
    5

    After paste the code, configure to Triggering for All Pages (see the below figure).

    mdx image
    6

    When you edit again the script on Google tag manager, you have to click SAVE, then SUBMIT and PUBLISH it.

    6

    Messenger+Pop-Ups

    1

    If you want to set an optional width and height of Popup scaling, it allows 2 flow types namely embedded and pop-ups. Follow the below steps.

    2

    Go to Pop-Ups menu from left sidebar (see the below figure).

    3

    Click on the install code button from the right side (see the below figure).

    mdx image
    4

    Copy the code section A or section B.

    mdx image
    5

    If your pop-up flow type is 'Embedded', then you can choose the code included in section “A” (see the above figure).

    6

    If your pop-up flow type is 'Popup' then you can choose the code section “B” (see the above figure).

    7

    ShoutBox, Dropdown, Slide-in Left, Slide-in Right types are, do not necessary to copy install code.

    8

    Paste code onto the body tag of web page source (see the below figure).

    mdx image

Messenger + Knowledgebase

    1

    If you want to set an optional width and height of Knowledgebase scaling, follow the below steps. Go to Knowledge Base menu from left sidebar (see the below figure).

    mdx image
    2

    Then choose the option that named "Manage Knowledgebase" from dropdown menu (see the below figure).

    mdx image
    3

    Copy the code (see the below figure).

    mdx image
    4

    Paste the code onto the top of body tag in web page source (see the below figure).

    5

    Result

    Once you have pasted the code, it will look like this in your web right bottom side (see the below figure).

    Messenger+Pop-Ups

    mdx image

    Messenger+Knowledgebase

    mdx image

Web Messenger + Pop-Ups + Knowledgebase (M+P+K)

    1

    This is the install instruction of messenger based popup and knowledgebase combination (M+P+K). Next following combinations are expanded to this combination which refers to (M+P+K) + Pop-Ups, (M+P+K)+Knowledgebase and (M+P+K)+Knowledgebase+Pop-Ups.

    2

    Copy messenger code

      1

      Go to Settings menu => Appstore.

      2

      You need to make sure the brand name that you created messenger (see the below figure).

      mdx image
      3

      Click the Add button of Knowledge Base in order to connect the messenger.

      mdx image
      4

      Add knowledge base (see the below figure).

      mdx image
      5

      Make sure MESSENGER INTEGRATION brand name is same as your created messenger (see the above figure section A and below figure).

      mdx image
      6

      Then you need to connect Pop-Ups. Click the add button of Pop Ups.

      mdx image
      7

      Add Pop Ups (see the below figure).

      mdx image
      8

      Make sure MESSENGER INTEGRATION brand name is same as your created messenger (see the above figure section A and below figure).

      mdx image
      9

      Make sure POP UPS brand name is same as your created Pop-Ups (see the above figure section B).

      10

      Go to Messenger and click on the install code button from the right side (see the below figure).

      mdx image
      11

      Copy the code (see the below figure).

      mdx image
      12

      If your website is single page app then you can choose a single-page app and copy the code (see the below figure).

      mdx image
    3

    Step 2: Paste the code in google tag manager

    1

    Log in to your google tag manager account.

    2

    Click the button “Add a new tag” (see the below figure).

    mdx image
    3

    Click the Tag Configuration=> Custom HTML (see the below figure).

    mdx image
    4

    Paste the code (see the below figure).

    mdx image
    5

    After paste the code, configure to Triggering for All Pages (see the below figure).

    mdx image
    6

    When you edit again the script on Google tag manager, you have to click SAVE, then SUBMIT and PUBLISH it.

    4

    If you want to set an optional width and height of Knowledgebase scaling, follow the below steps.

    1

    Go to Knowledge Base menu from left sidebar (see the below figure).

    mdx image
    2

    Then choose the option that named "Manage Knowledgebase" from dropdown menu (see the below figure).

    mdx image
    3

    Copy the code (see the below figure).

    mdx image
    4

    Paste the code onto the top of body tag in web page source (see the below figure).

    mdx image
    5

    If you want to set an optional width and height of Popup scaling, it allows 2 flow types namely embedded and pop-ups. Follow the below steps.

    1

    Go to Pop-Ups menu from left sidebar (see the below figure).

    2

    Click on the install code button from the right side (see the below figure).

    mdx image
    3

    Copy the code section A or section B.

    mdx image
    4

    If your pop-up flow type is "Embedded", then you can choose the code included in section “A” (see the above figure).

    5

    If your pop-up flow type is "Popup" then you can choose the code section “B” (see the above figure).

    6

    ShoutBox, Dropdown, Slide-in Left, Slide-in Right types are, do not necessary to copy install code.

    7

    Paste code onto the body tag of web page source (see the below figure).

    mdx image
    6

    Step 3: Result

    Once you have pasted the code, it will look like this in your web right bottom side (see the below figure).

    mdx image

(M + P + K) + Pop-Ups

    1

    Copy messenger code

    1
    2

    Go to Pop-Ups menu from left sidebar (see the below figure).

    3

    Click on the install code button from the right side (see the below figure).

    mdx image
    4

    Copy the code (see the below figure).

    mdx image
    5

    When you want to set an optional width and height of Popup scaling, it allows 2 flow types namely embedded and pop-ups. Insert code section A and B onto the top of body tag in page of your website.

    6

    If your pop-up flow type is "Embedded", then you can choose the code included in section “A” (see the above figure).

    7

    If your pop-up flow type is "Popup" then you can choose the code section “B” (see the above figure).

    8

    ShoutBox, Dropdown, Slide-in Left, Slide-in Right types are, do not necessary to copy install code.

    2

    Paste the code in google tag manager

    1

    Log in your google tag manager account.

    2

    Click the button “Add a new tag” (see the below figure)

    mdx image
    3

    Click the Tag Configuration => Custom HTML (see the below figure).

    mdx image
    4

    Paste the code (see the below figure).

    mdx image
    5

    After paste the code, configure to Triggering for All Pages (see the below figure).

    mdx image
    6

    When you edit again the script on Google tag manager, you have to click SAVE, then SUBMIT and PUBLISH it.

    7

    If you want to set an optional width and height of Popup scaling, it allows 2 flow types namely embedded and pop-ups. Follow the below steps.

    8

    Go to Pop-Ups menu from left sidebar (see the below figure).

    9

    Click on the install code button from the right side (see the below figure).

    mdx image
    10

    Copy the code section A or section B.

    mdx image
    11

    Paste code onto the body tag of web page source (see the below figure).

    mdx image
    3

    Result

    Once you have pasted the code, it will look like this in your web right bottom side (see the below figure).

    mdx image

(M + P + K) + Knowledgebase

    1

    Copy messenger code

    1
    2

    Go to Knowledge Base menu from left sidebar (see the below figure).

    mdx image
    3

    Then choose the option that named "Manage Knowledgebase" from the dropdown menu (see the below figure).

    mdx image
    4

    Copy the code (see the below figure).

    mdx image
    5

    Do not miss to copy the additional source of section “B” and copy it into top of body tag of the source code.

    6

    Paste code onto the body tag of web page source (see the below figure).

    mdx image
    2

    Paste the code in google tag manager

    1

    Log in your google tag manager account.

    2

    Click the button “Add a new tag” (see the below figure).

    mdx image
    3

    Click the Tag Configuration => Custom HTML (see the below figure).

    mdx image
    4

    Paste the code (see the below figure).

    mdx image
    5

    After paste the code, configure to Triggering for All Pages (see the below figure).

    mdx image
    3

    Result

    Once you have pasted the code, it will look like this in your web right bottom side (see the below figure).

    mdx image

(M + P + K) + Pop-Ups + knowledgebase

    1

    Copy messenger code

    1
    2

    Go to Pop-Ups menu from left sidebar (see the below figure).

    3

    Click on the install code button from the right side (see the below figure).

    mdx image
    4

    Copy the code (see the below figure).

    mdx image
    5

    When you want to set an optional width and height of Popup scaling, it allows 2 flow types namely embedded and pop-ups. Insert code section A and B onto the top of body tag in page of your website.

    6

    If your pop-up flow type is "Embedded", then you can choose the code included in section “A” (see the above figure).

    7

    If your pop-up flow type is "Popup" then you can choose the code section “B” (see the above figure).

    8

    ShoutBox, Dropdown, Slide-in Left, Slide-in Right types are, do not necessary to copy install code.

    2

    Paste the code in google tag manager

    1

    Log in your google tag manager account.

    2

    Click the button “Add a new tag” (see the below figure)

    mdx image
    3

    Click the Tag Configuration => Custom HTML (see the below figure).

    mdx image
    4

    Paste the code (see the below figure).

    mdx image
    5

    After paste the code, configure to Triggering for All Pages (see the below figure).

    mdx image
    6

    When you edit again the script on Google tag manager, you have to click SAVE, then SUBMIT and PUBLISH it.

    7

    If you want to set an optional width and height of Popup scaling, it allows 2 flow types namely embedded and pop-ups. Follow the below steps.

    8

    Go to Pop-Ups menu from left sidebar (see the below figure).

    9

    Click on the install code button from the right side (see the below figure).

    mdx image
    10

    Copy the code section A or section B.

    mdx image
    11

    Paste code onto the body tag of web page source (see the below figure).

    mdx image
    3

    Copy the code of Knowledgebase

    1

    Go to Knowledge Base menu from left sidebar (see the below figure).

    mdx image
    2

    Then choose the option that named "Manage Knowledgebase" from the dropdown menu (see the below figure).

    mdx image
    3

    Copy the code (see the below figure).

    mdx image
    4

    Do not miss to copy the additional source of section “B” and copy it into top of body tag of the source code.

    4

    Paste the code in google tag manager

    1

    Log in your google tag manager account.

    2

    Click the button “Add a new tag” (see the below figure).

    mdx image
    3

    Click the Tag Configuration => Custom HTML (see the below figure).

    mdx image
    4

    Paste the code (see the below figure).

    mdx image
    5

    After paste the code, configure to Triggering for All Pages (see the below figure).

    mdx image
    5

    Result

    Once you have pasted the code, it will look like this in your web right bottom side (see the below figure).

    mdx image
    6

    Advanced Erxes script manager

    In the advanced Erxes script manager installation instruction is described combination of the following features.

    • Messenger + Pop-Ups (or Knowledgebase)
    • Messenger + Pop-Ups + Knowledgebase (M+P+K)
    • (M+P+K) + Pop-Ups
    • (M+P+K) + Knowledgebase
    • (M+P+K) + Pop-Ups + Knowledgebase

Web messenger + Pop‑Ups (or Knowledgebase)

This is the script install instruction of Messenger contains Pop-Ups form or Messenger contains Knowledgebase form in Erxes script manager.

    1

    Create a messenger contains Pop‑Ups or messenger contains knowledgebase.

      1

      Go to Advanced combination installation => Web messenger + Pop‑Ups (or Knowledgebase).

      Advanced combination installation

      2

      Then follow steps number from 1 to 6 of the instruction for Web messenger + Pop‑Ups (or Knowledgebase).

    2

    Copy script and paste the code

      1

      After that, follow the instruction of Erxes script manager => Web messenger. The messenger, you have to select which you created messenger. Erxes script installation

    3

    Result. Once you have pasted the code, it will look like this in your web right bottom side (see the below figure).

    Messenger+Pop‑Ups

    mdx image

    Messenger+Knowledgebase

    mdx image

Web messenger + Pop‑Ups + Knowledgebase (M+P+K)

This is the install instruction of messenger based popup and knowledgebase combination (M+P+K). Next following combinations are expanded to this combination which refers to (M+P+K) + Pop-Ups, (M+P+K)+Knowledgebase and (M+P+K)+Knowledgebase+Pop-Ups.

    1

    Create a messenger contains both Pop‑Ups and Knowledgebase.

      1

      Go to Advanced combination installation => Web messenger + Pop‑Ups + Knowledgebase. Advanced combination installation

      2

      Then follow steps number from 1 to 9 of the instruction for Web messenger + Pop‑Ups + Knowledgebase.

    2

    Copy script and paste the code

    After that, follow the instruction of Erxes script manager => Web messenger. The messenger, you have to select which you created messenger. Erxes script Installation

    3

    Result. Once you have pasted the code, it will look like this in your web right bottom side. Click to FAQ to see Pop‑Ups form.

    mdx image

(M + P + K) + Pop‑Ups (or Knowledgebase)

    1

    Copy messenger code

      1
      2

      Go to Settings menu => Script manager (see the below figure).

      mdx image
      3

      Create new script to click NEW SCRIPT (see the below figure).

      mdx image
      4

      Messenger+ Pop‑Ups: Insert name and select the messenger that you created, then select your created Pop‑Ups (see the below figure).

      mdx image
      5

      Messenger+ Knowledgebase: Insert name and select the messenger that you created, then select your created Knowledgebase (see the below figure).

      mdx image
      6

      Click on the install code button from the list (see the below figure).

      mdx image
      7

      Copy the code that you created the messenger by clicking COPY TO CLIPBOARD (see the below figure).

      mdx image
    2

    Paste the code in your web source

    1

    Paste the code in the bottom of the body tag (see the below figure).

    mdx image
    3

    Result. Once you have pasted the code, it will look like this in your web right bottom side (see the below figure).

    Messenger+Pop‑Ups

    mdx image

    Messenger+knowledgebase

    mdx image

(M + P + K) + Pop‑Ups + Knowledgebase

    1

    Copy messenger code

      1
      2

      Go to Settings menu => Script manager (see the below figure).

      mdx image
      3

      Create new script to click NEW SCRIPT (see the below figure).

      mdx image
      4

      Insert name and select the Messenger, Pop‑Ups and Knowledgebase that you created (see the below figure).

      mdx image
      5

      Click on the install code button from the list (see the below figure).

      mdx image
      6

      Copy the code that you created the messenger by clicking COPY TO CLIPBOARD (see the below figure).

      mdx image

      When you want to set an optional width and height of Popup scaling, it allows 2 flow types namely embedded and pop-ups. Insert code section A and B onto the top of body tag in page of your website.

      • If your pop-up flow type is "Embedded", then you can choose the code included in section “A” (see the above figure).
      • If your pop-up flow type is "Popup" then you can choose the code section “B” (see the above figure).
      • ShoutBox, Dropdown, Slide-in Left, Slide-in Right types are, do not necessary to copy install code.
    2

    Paste the code in your web source

    1

    Paste the code in the bottom of the body tag (see the below figure).

    mdx image

Google Tag Manager Troubleshooting guide

If you have any problems with when installing Google Tag Manager script on specified pages, there are a few troubleshooting steps you can take to check things are set up correctly. This instruction covers the case that all web pages contain the messenger and only some specified page contains pop-up script. Therefore, it is possible to work on other cases, just change the erxes scripts. Following instruction shows how to arrange the erxes scripts on your web pages.

In order to install two script codes on your page, you need to set some triggers on Google tag manager html code.

    1

    Configure trigger on Messenger script:

      1

      Add trigger on messenger script code in html which you have already configured in Google tag manager.

      2

      Configure a trigger that messenger does not contains your specified page. In this case, messenger script would be configured on another tag. It is referred to next paragraph for Configure trigger on Messenger + Pop‑Up script.

      • Trigger Type: Page View
      • This trigger fires on: Some page Views
      • Fire this trigger condition should be: Page URL does not contain your specified page such as (index/index/category/printers (See the following figure)
      mdx image
      3

      Then go to tags and selects the trigger that you configured. (See the following figure)

      mdx image
    2

    Configure trigger on Messenger + Pop‑Up script:

    While messenger script does not contain specified page as above case, you need to configure messenger script with Pop-Ups script. Figure out the following steps.

      1

      For google tag manager code, you have to paste scripts of both Messenger and Pop‑Ups code. (See the following figure)

      mdx image
      2

      Add trigger on the html code. The code trigger condition contains your specified page.

      • Trigger Type: Page View
      • This trigger fires on: Some page Views
      • Fire this trigger condition should be: Page URL contains your specified page such as (index/index/category/printers) (See the following figure).
      mdx image
    3

    Then go to tags and selects the trigger that you configured (See the following figure).

    mdx image
    4

    See the figure for Google tag script with trigger configuration.

    mdx image
Edit this page
